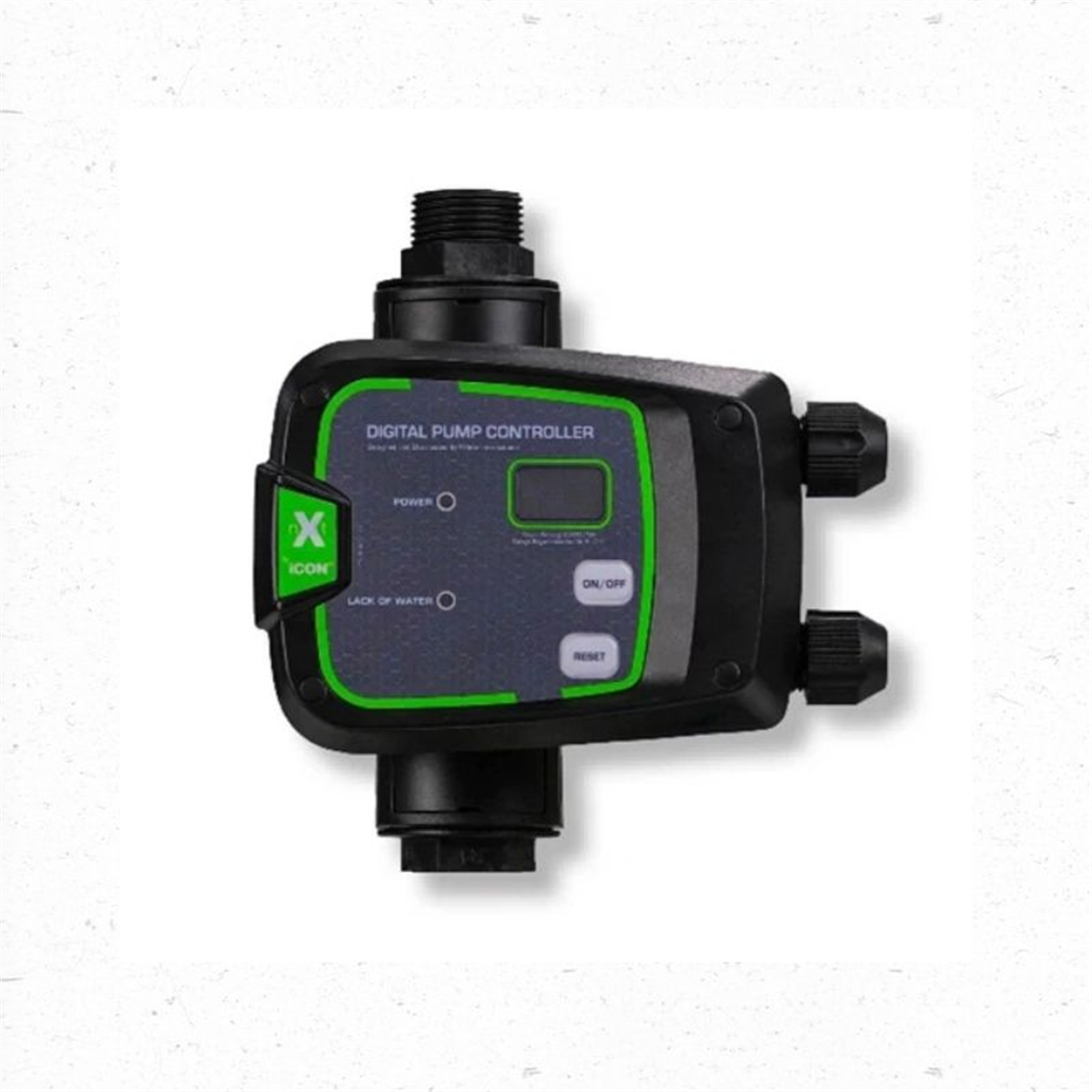

The Bianco iCON nXt is an automatic pump pressure controller designed to provide reliable, consistent pressurised water for household, irrigation, water transfer, washing and pressure boosting applications.

Designed and tested in Australia, the nXt features a digital pressure display, dry-run protection, anti-cycle protection and automatic restart functions. The controller is suitable for pumps supplying clean, non-volatile liquids without fibres or solids.

Applications

• Household water supply
• Irrigation
• Water transfer
• Washing systems
• Pressure boosting

Features & Benefits

• Digital display provides a real-time indication of system pressure
• Automatic pump control for convenient pressurised water supply
• Anti-cycle protection helps prevent excessive pump cycling
• Dry-run protection with automatic restart
• Automatically checks for water availability every 24 hours after a dry-run shutdown
• Anti-seize function operates if the pump has not run for 24 hours
• Automatically restarts the pump following a power failure
• Over-pressure protection shuts the pump down when pressure reaches 10 bar
• Overload protection helps protect the connected pump and controller
• Push-n-connect fitting with U-clip allows easy assembly and removal
• AS/NZS 4020 drinking water approved
• Plug-and-play connection to compatible pumps
• IP65-rated controller housing

Specifications

• Controller Type: Automatic ON/OFF
• Rated Power: 1.5kW / 1500W
• Rated Voltage: 220–240V AC
• Maximum Current: 10A
• Start Pressure: 2.2 bar
• Stop Pressure: On no flow
• Maximum Pressure: 10 bar / 145 PSI
• Maximum Liquid Temperature: 40°C
• Protection Rating: IP65
• Inlet: 1" BSP male
• Outlet: 1" BSP male
• Casing Material: Technopolymer
• Power Connection: 10A
• Pump Connection: Plug and play
• Operating Modes: 1
• Flow Sensor: Integrated
• Optional Accessory: 1¼" union kit

Product Details

• Model: iCON nXt
• Product Number: 808034
