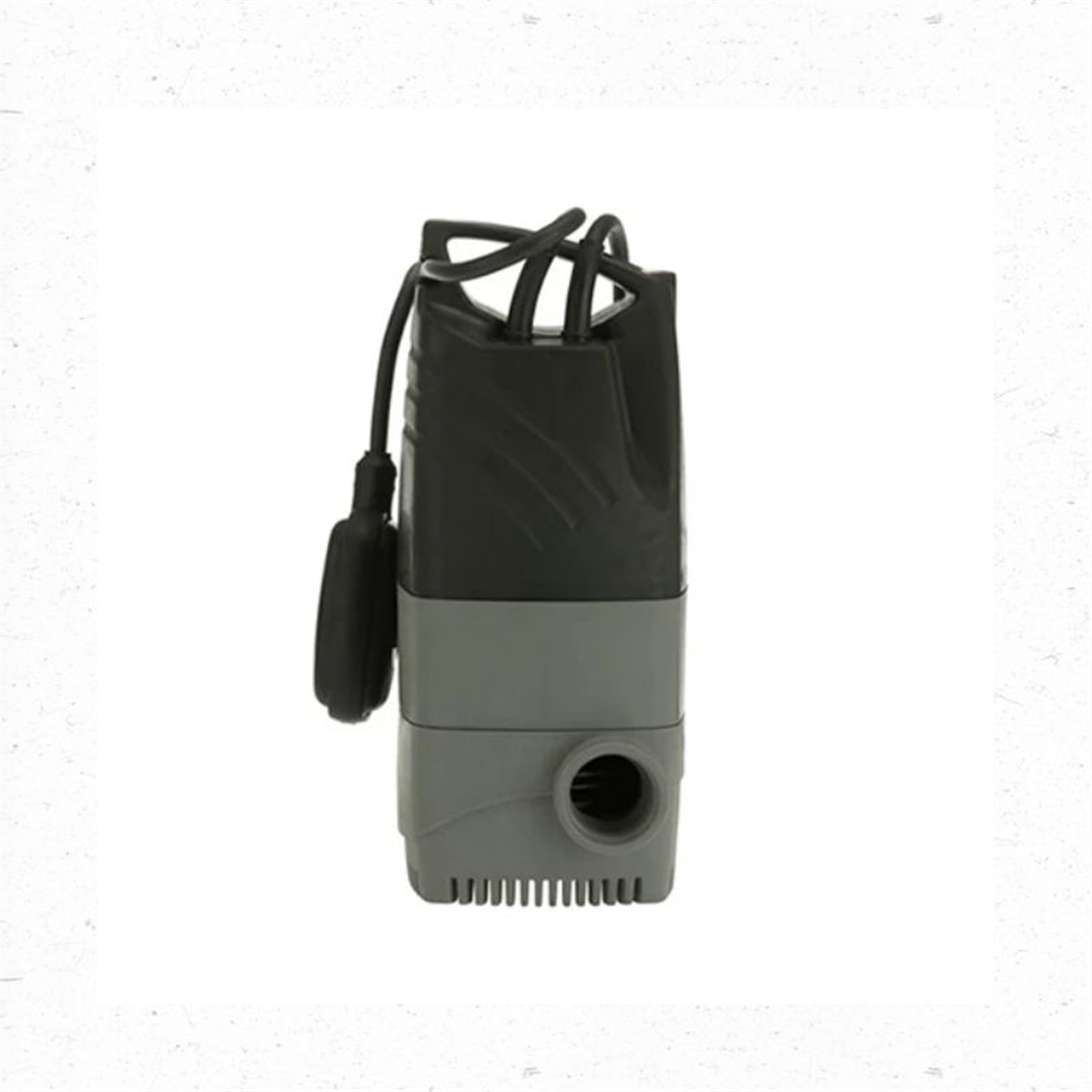

The ClayTech PitBull 15 is a high-head submersible drainage pump specifically designed for Australian wastewater treatment systems and above-surface irrigation applications.

Its hydraulic design is suited to wastewater irrigation, with the pump operating within its best efficiency and reliability zone at typical operating conditions. At approximately 10m head, the PitBull 15 delivers around 80 LPM, making it well suited to applications where water needs to be pumped to an elevated irrigation point.

Applications

• Surface irrigation of secondary treated wastewater
• Clean water dewatering
• Basement drainage
• Medium heat transfer
• Wastewater treatment systems

Features & Benefits

• Specifically designed for Australian wastewater treatment systems
• High-head submersible drainage pump
• Maximum flow of 170 LPM
• Maximum head of 15m
• Delivers approximately 80 LPM at 10m head
• Designed to operate around the centre of its best efficiency and reliability zone at typical operating conditions
• Compact design
• Automatic operation with Flexi float switch
• Plug-and-play design
• 8m power cable
• 1¼" outlet
• Suitable for above-surface irrigation applications

Specifications

• Maximum Flow: 170 LPM / 10,200 L/hr
• Maximum Head: 15m
• P2 Power: 550W
• Float Switch: Yes – Flexi
• Cable Length: 8m
• Outlet Size: 1¼" / 31.75mm
• Pump Diameter: 150mm
• Pump Height: 325mm
• Weight: 5kg
• Voltage: 240V
• Phase: Single phase
• Frequency: 50Hz

Product Details

• Model: PitBull 15
• Product Number: 807690
