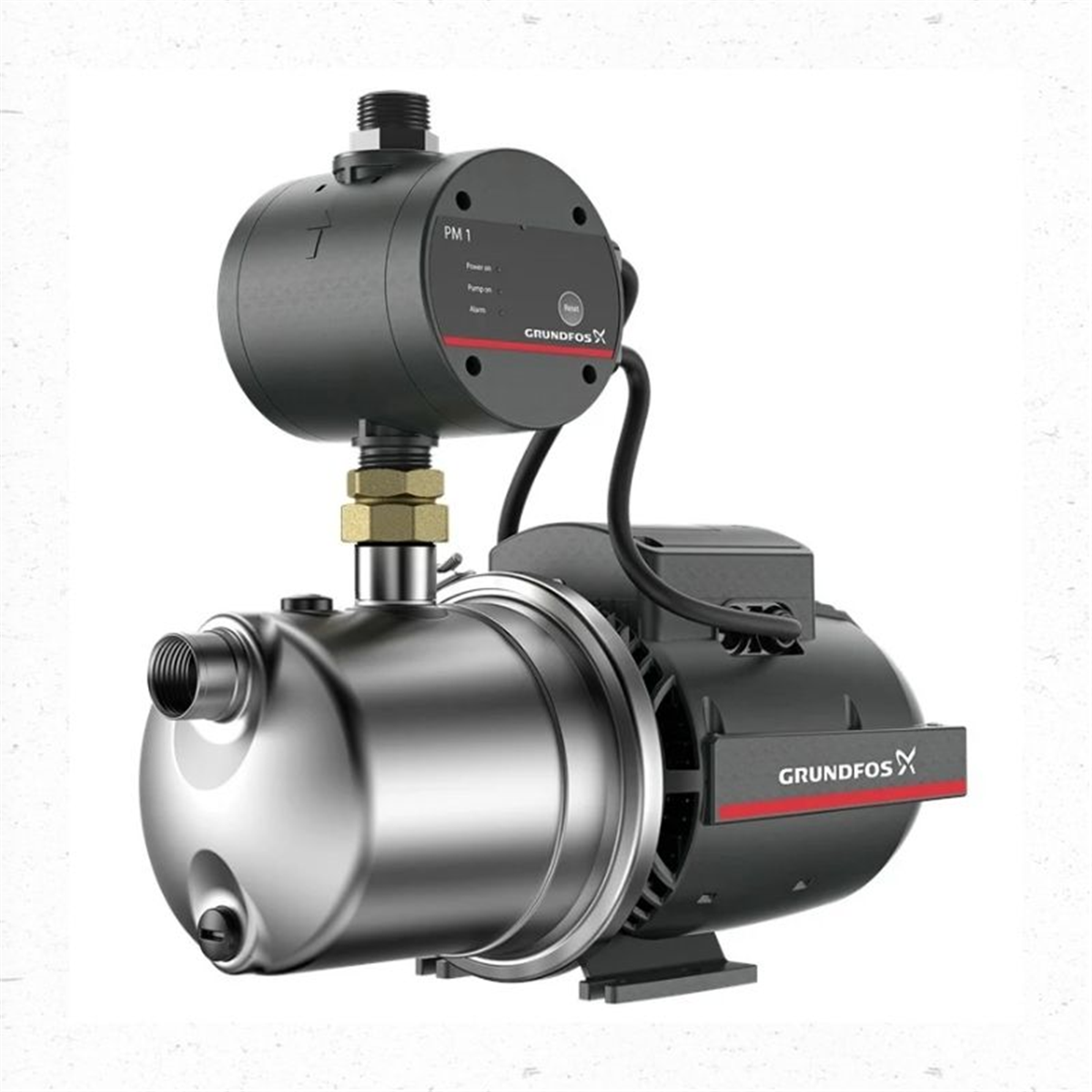

The Grundfos JP 3-42 PM1 is a complete booster pump system designed for garden, domestic and general water supply applications. It combines a self-priming, single-stage centrifugal JP pump with a PM1 pressure manager to provide automatic start and stop according to water demand and consistent water pressure.

The self-priming pump can lift water from below the inlet level and handle a mixture of air and water during priming, with a suction lift of up to 8m. The system also features dry-running and anti-cycling protection to help protect the pump and reduce the risk of damage.

Key Features

• Complete booster pump system
• Self-priming, single-stage centrifugal pump
• Automatic start and stop according to water demand
• PM1 pressure manager with 1.5 bar start pressure
• Dry-running protection
• Anti-cycling protection with leakage detection
• Integrated non-return valve for backflow prevention
• Built-in thermal motor protection
• Robust corrosion-free construction
• Air-cooled motor with sealed, greased-for-life ball bearings
• Self-priming capability with suction lift up to 8m
• Suitable for garden and domestic applications

Specifications

• Motor / Power: 440W
• Maximum Flow: 60 L/min
• Maximum Head: 38.5m
• Pressure: 385kPa
• Inlet: 1" female / 25mm
• Outlet: 1" male / 25mm
• Impeller: Composite
• Start Pressure: PM1 – 1.5 bar
• Suction Lift: Maximum 8m
• Maximum System Pressure: 6 bar

Operating Specifications

• Ambient Temperature: 0°C to +40°C
• Liquid Temperature: 0°C to +40°C
• Supply Voltage: 1 x 230V, 50Hz / 1 x 115V, 60Hz
• Enclosure Class: IP44 – suitable for covered installation
• Cable: 1.5m with plug

Components

• Self-priming Grundfos JP pump
• PM1 pressure manager, wired to the pump
• Automatic start/stop with 1.5 bar start pressure
• Dry-running protection
• Anti-cycling protection
• Integrated non-return valve
• 1.5m cable with plug

Important Features

The PM1 pressure manager automatically starts the pump when pressure drops below 1.5 bar and keeps the pump running while there is water flow. Dry-running protection automatically stops the pump if no water is detected, while the anti-cycling function stops the pump if a minor leak or partially open tap causes repeated cycling.

Formerly known as the JPC 3-42 PM1.

Product Details

Model: JP 3-42 PM1 BBVP

Product Number: 99463898

Warranty: 2 years
