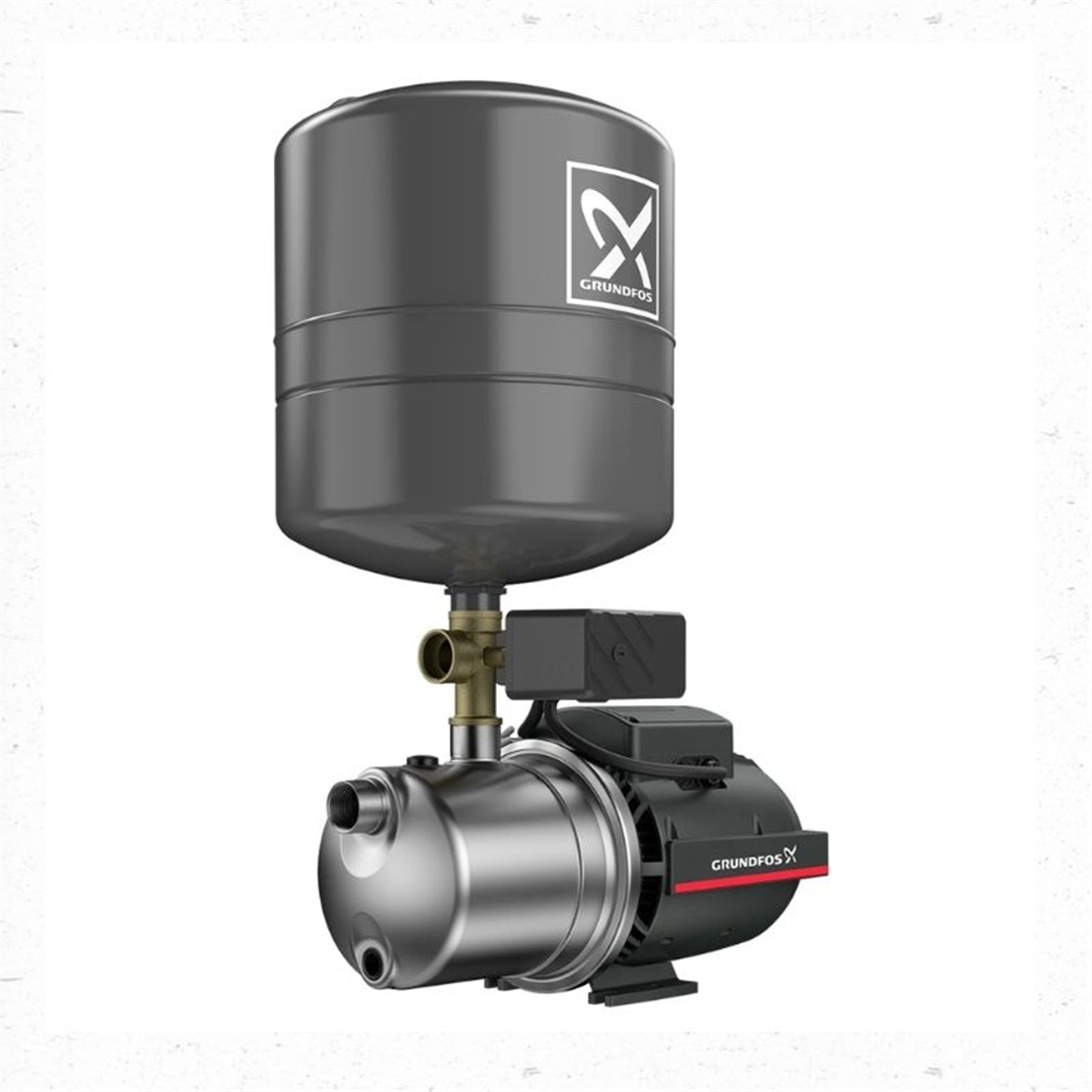

The Grundfos JP 4-54 PT-V is a complete water pressure boosting system designed for domestic water supply, groundwater intake and rainwater harvesting applications. It combines a self-priming Grundfos JP pump with an 18-litre vertical diaphragm pressure tank, pressure switch and pressure gauge to provide automatic start and stop according to water demand.

The pressure tank helps reduce water hammer in pipework and limits the number of pump start/stop cycles. Stored water can be used during periods of low water consumption, helping reduce unnecessary pump operation.

Key Features

• Complete domestic water pressure boosting system
• Self-priming Grundfos JP pump
• 18L vertical diaphragm pressure tank
• Automatic start and stop
• Pressure switch with 2.2 bar cut-in pressure
• Pressure gauge included
• Pressure tank helps reduce water hammer
• Reduces pump start/stop cycles
• Self-priming with suction lift up to 8m
• Built-in thermal protection
• Robust construction using corrosion-resistant materials
• Air-cooled motor with sealed, greased-for-life ball bearings

Suitable For

• Domestic groundwater intake
• Domestic water pressure boosting
• Domestic rainwater harvesting

Components

• Self-priming JP pump
• 18L diaphragm pressure tank
• Pressure switch – cut-in pressure set at 2.2 bar
• Pressure gauge
• 1.5m cable with plug

Product Details

Model: JP 4-54 PT-V A-A-BBVP

Product Number: 99463896
