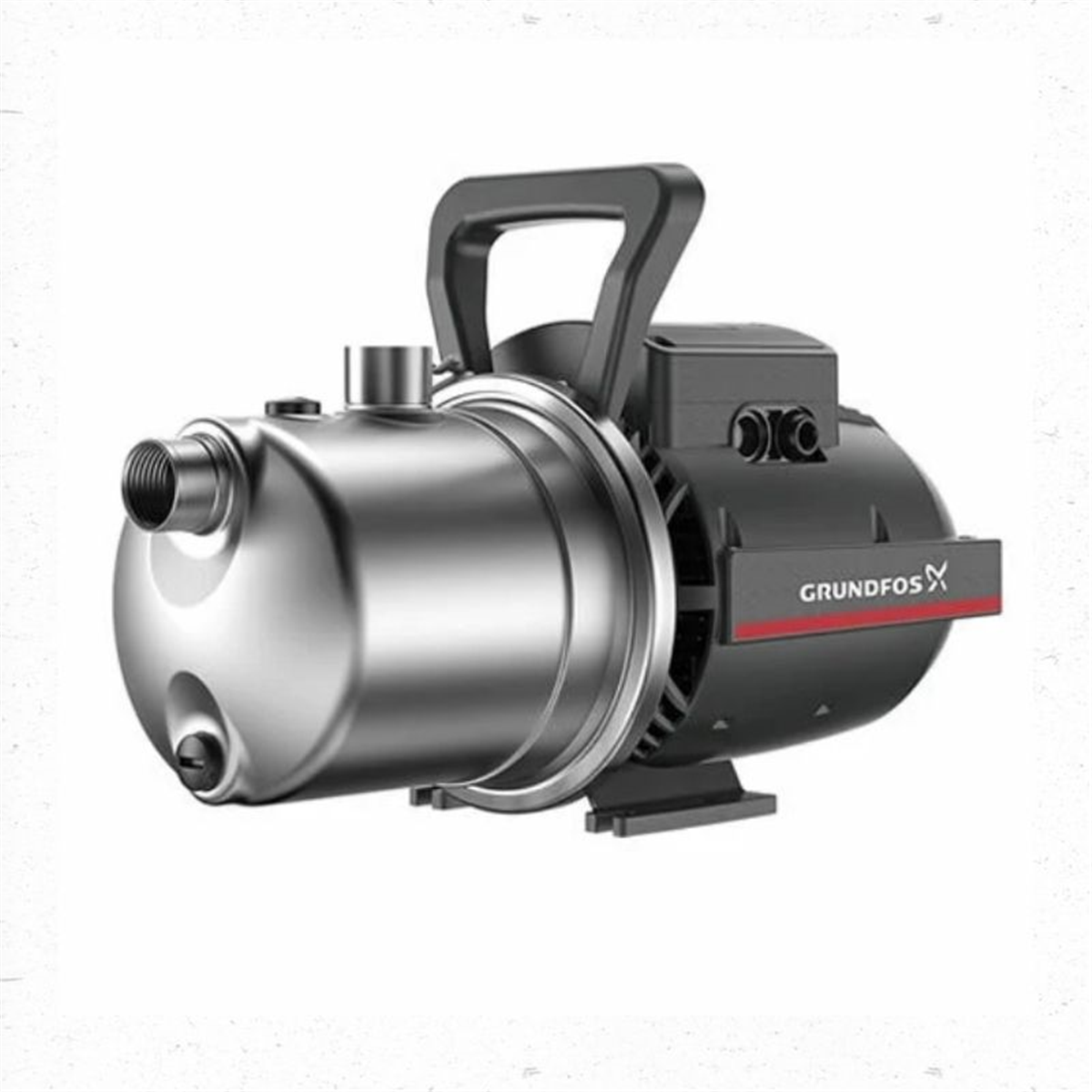

he Grundfos JP4-47 is a compact, self-priming, single-stage centrifugal jet pump designed for reliable and trouble-free water supply. With excellent suction capacity and a built-in ejector with guide vanes, the JP4-47 provides optimum self-priming performance with a suction lift of up to 8 metres.

The robust design features a stainless steel pump housing, composite impeller and electrophoretic paint coating, providing excellent corrosion resistance and long service life. Its compact size and convenient lifting handle make the pump easy to carry, handle and install.

The JP4-47 can lift water from below the inlet level and is capable of handling a mixture of air and water until the pump reaches a fully primed pumping condition. Built-in thermal and current protection automatically stops the pump if it overheats, while the air-cooled motor and sealed, greased-for-life ball bearings provide quiet operation and minimal maintenance.

Applications

The Grundfos JP4-47 is suitable for domestic water supply applications where pressure boosting and self-priming are required, including:

• Single and two-family homes
• Pressure boosting from break tanks, roof tanks or wells
• Garden watering and irrigation
• Car washing
• Small-scale agriculture and horticulture
• Light commercial applications

Features & Benefits

• Flow rate: Up to 75 LPM
• Self-priming with suction lift up to 8 metres
• 1" (25 mm) suction and discharge connections
• Compact and easy-to-handle design
• Stainless steel pump housing for excellent corrosion resistance
• Composite impeller for reliable performance
• Built-in ejector with guide vanes for optimum self-priming
• Built-in thermal and current protection
• No additional motor protection required
• Excellent suction capacity, even with air bubbles
• Can handle small sandy impurities in the water
• Air-cooled motor
• Sealed, greased-for-life ball bearings
• Convenient lifting handle
• Designed for long service life with minimal maintenance

Product Details

• Model: JP4-47
• Product Number: 99458783
