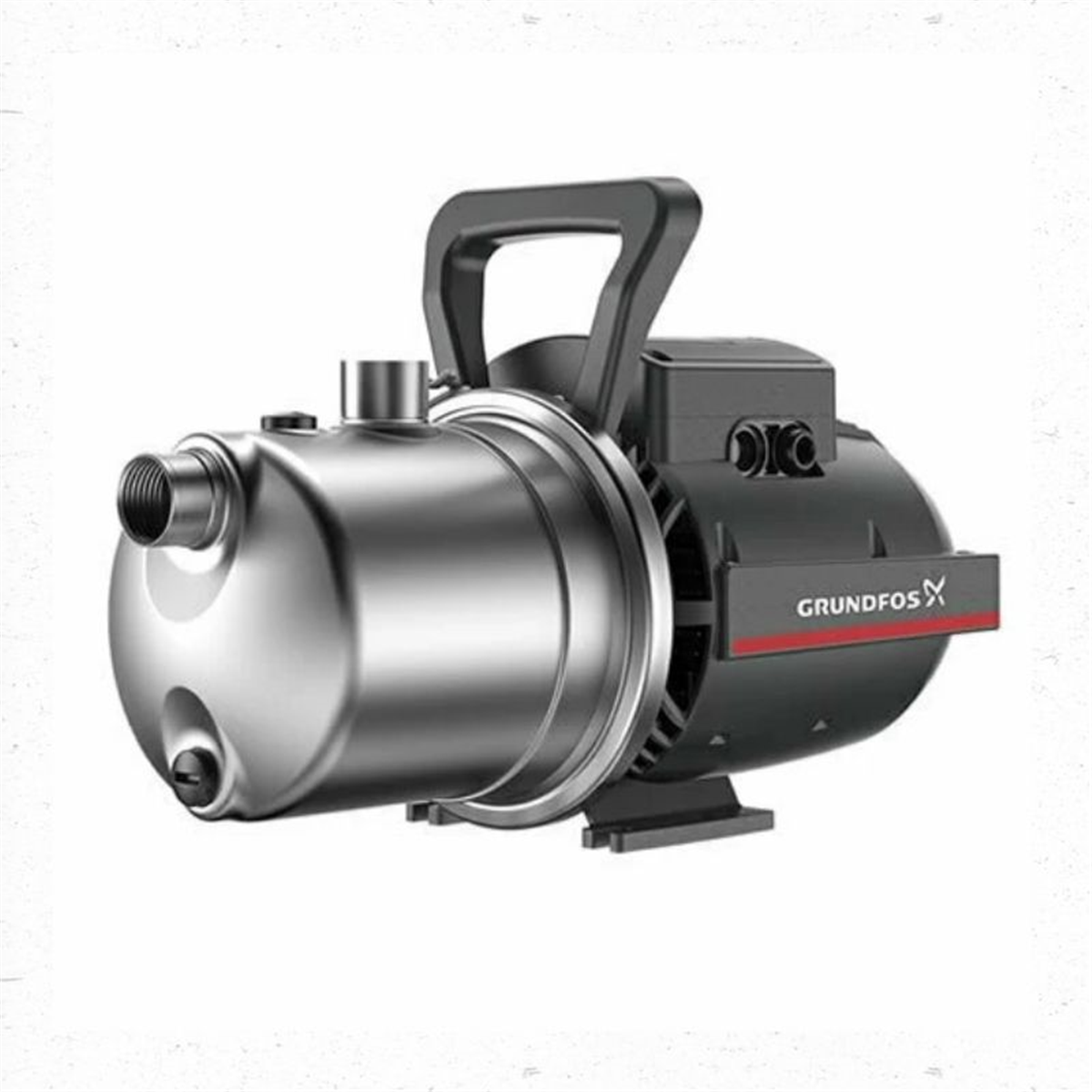

The Grundfos JP5-48 is a compact, self-priming, single-stage centrifugal jet pump designed for reliable and trouble-free water supply. With excellent suction capacity and a built-in ejector with guide vanes, the JP5-48 provides optimum self-priming performance with a suction lift of up to 8 metres.

The stainless steel pump housing, composite impeller and electrophoretic paint coating provide excellent corrosion resistance and durability. Its compact design and convenient lifting handle also make the pump easy to carry and install.

The JP5-48 can lift water from below the inlet level and is capable of handling a mixture of air and water until the pump reaches a fully primed pumping condition. Built-in thermal and current protection automatically stops the pump if it overheats, while the air-cooled motor and sealed, greased-for-life ball bearings provide quiet operation with minimal maintenance.

Applications

Suitable for domestic water supply applications where self-priming and pressure boosting are required, including:

• Single and two-family homes
• Pressure boosting from break tanks, roof tanks or wells
• Garden watering and irrigation
• Car washing
• Small-scale agriculture and horticulture
• Light commercial applications

Features & Benefits

• Flow rate: Up to 90 LPM
• Self-priming with suction lift up to 8 metres
• 1" (25 mm) suction and discharge connections
• Robust, compact design
• Stainless steel pump housing for excellent corrosion resistance
• Composite impeller for reliable performance
• Built-in ejector with guide vanes for optimum self-priming
• Built-in thermal and current protection
• No additional motor protection required
• Excellent suction capacity, even with air bubbles in the water
• Can handle small sandy impurities in the water
• Air-cooled motor
• Sealed, greased-for-life ball bearings
• Convenient lifting handle for easy handling and installation
• Designed for long service life with minimal maintenance

Product Details

Model: JP5-48

Product Number: 99458785
