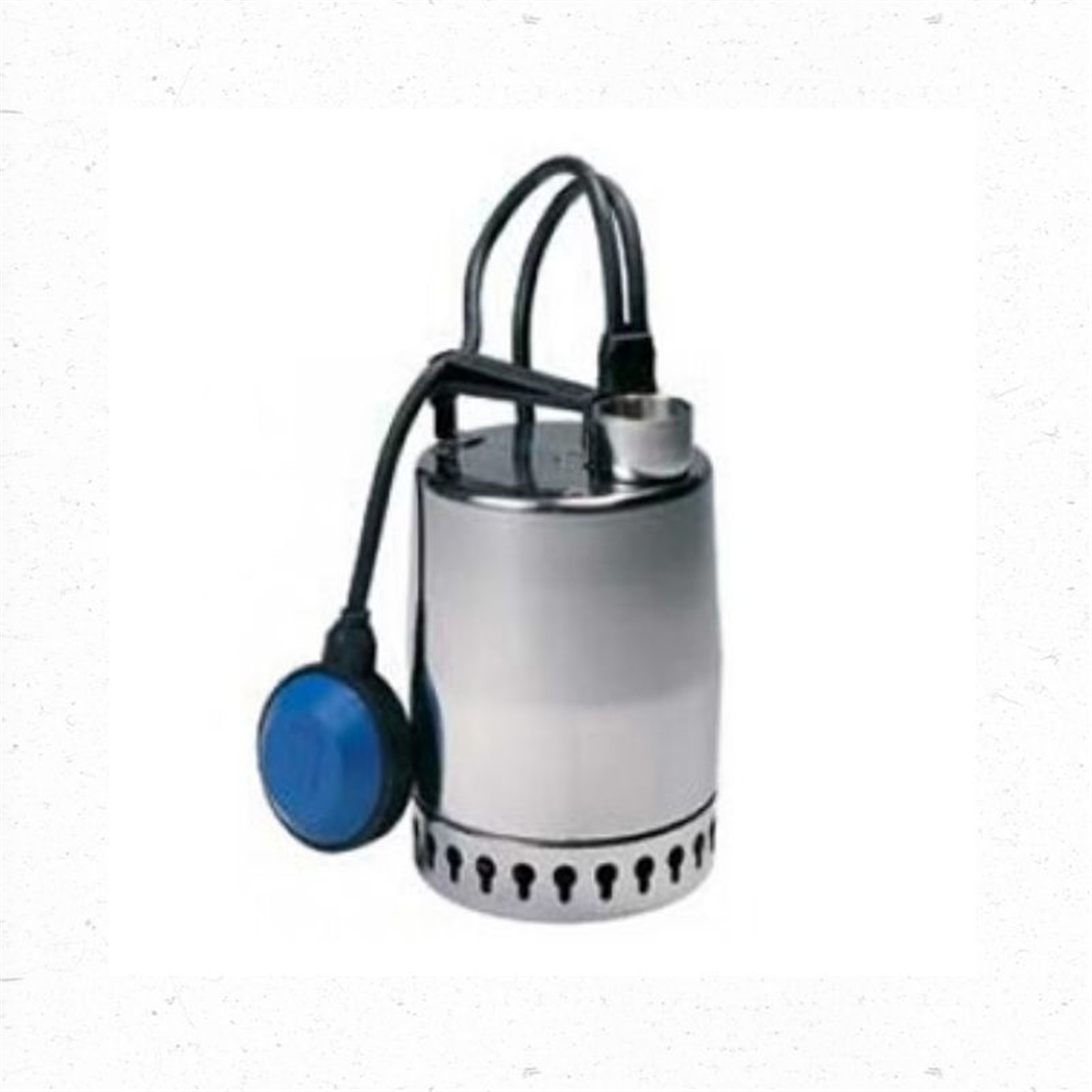

Grundfos KP250-A-1 Automatic Submersible Pump - 170 LPM

The Grundfos UNILIFT KP 250-A-1 is a compact stainless steel submersible drainage pump designed for pumping non-aggressive water and grey water. It can be used as a portable pump or installed permanently for drainage applications both inside and outside buildings.

The pump features a semi-open impeller, integrated thermal motor protection and a stainless steel construction. It is supplied with a 5 m power cable and is suitable for pumping groundwater, surface water, rainwater and similar liquids.

Applications

• Drainage
• Groundwater pumping
• Surface water
• Rainwater
• Domestic wastewater
• Grey water
• Water treatment applications

Features & Benefits

• Compact stainless steel construction
• Single-stage submersible design
• Semi-open impeller
• Free passage for particles up to 10 mm
• Integrated thermal motor protection
• Double shaft seal
• Stainless steel shaft
• Built-in carrying handle
• Supplied with 5 m power cable
• Suitable for portable or permanent installation
• Suitable for indoor and outdoor drainage

Specifications

• Pump type: Single-stage submersible drainage pump
• Maximum flow: Approximately 187 L/min
• Maximum head: Approximately 11 m
• Maximum particle size: 10 mm
• Pump outlet: Rp 1¼"
• Maximum installation depth: 10 m
• Power input: 0.48 kW
• Rated motor power: 0.3 kW
• Supply voltage: 1 x 220–240 V
• Frequency: 50 Hz
• Enclosure class: IP68
• Insulation class: F
• Cable length: 5 m
• Motor protection: Thermal overload
• Impeller: Semi-open
• Pump construction: Stainless steel

Product Details

• Model: UNILIFT KP250-A-1
• Product Number: 92533646
