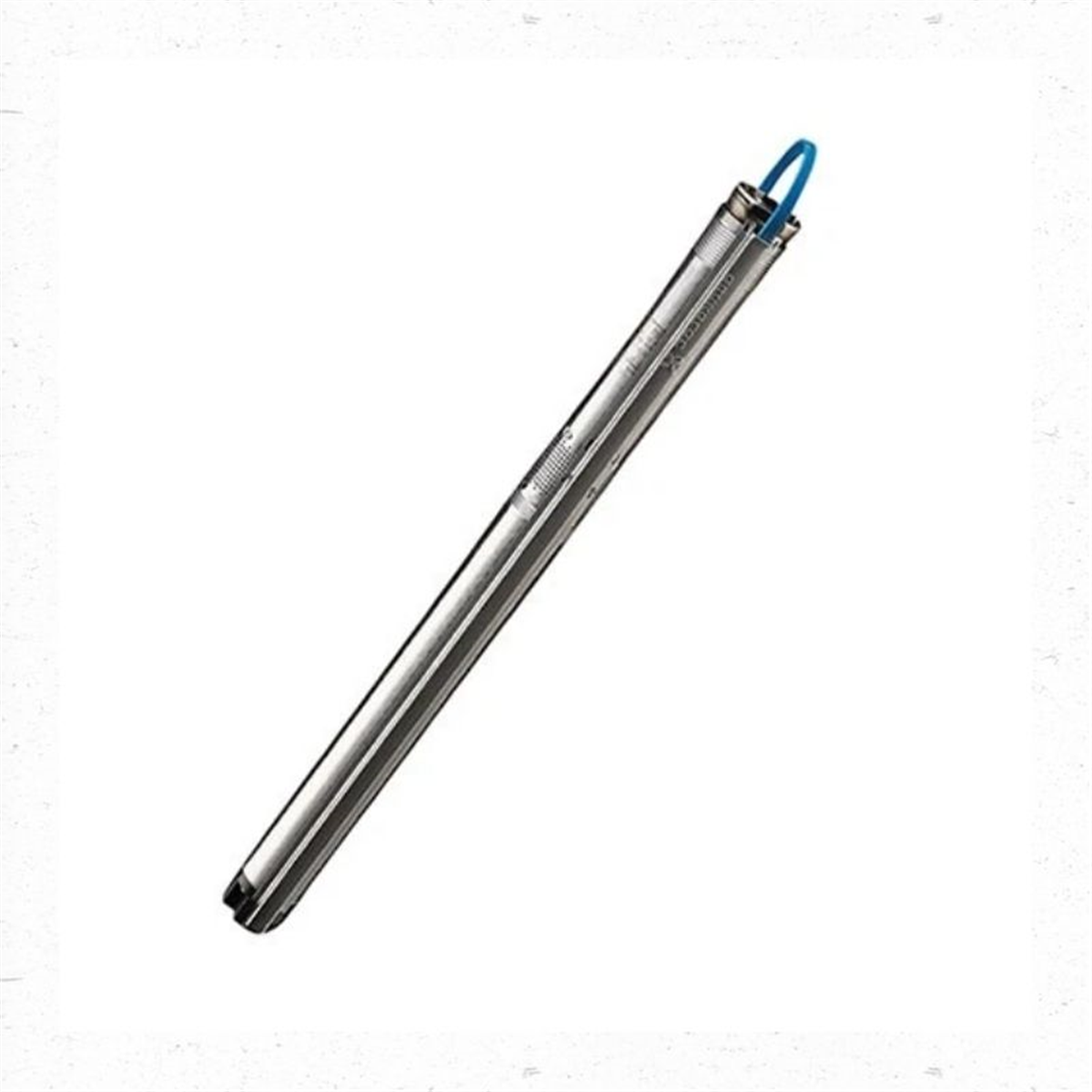

The Grundfos SQ2-55 N is a compact 3-inch submersible borehole pump designed for pumping clean, non-aggressive and non-explosive liquids that do not contain solid particles or fibres. The SQ2 is suitable for both continuous and intermittent operation across a range of domestic, agricultural and irrigation applications.

With a high-efficiency motor and integrated protection systems, the SQ2 provides reliable and efficient pumping while protecting the pump from common operating conditions. Built-in protection includes dry-run, overvoltage, undervoltage, over-temperature and overload protection.

The integrated soft-start system provides smooth starting, helping reduce electrical and mechanical stress on the pump. Constructed entirely from stainless steel, the SQ2 offers excellent corrosion resistance and durability.

Its compact 3-inch design allows installation in boreholes with a minimum diameter of 76 mm, with a maximum installation depth of 150 metres.

For an automatic water supply system, an SQ Pressure Kit can be added. The kit includes a bore cap, pressure tank, pressure gauge and fittings.

Suitable For

• Domestic water supply
• Small waterworks
• Irrigation
• Tank filling applications
• Pressure boosting
• Bore water supply
• Continuous or intermittent pumping applications

Features & Benefits

• 3-inch compact submersible borehole pump
• Fixed-speed operation
• High-efficiency motor
• Integrated soft-start system
• Integrated dry-run protection with automatic restart every 5 minutes
• Overvoltage protection
• Undervoltage protection
• Over-temperature protection
• Overload protection
• Stainless steel construction
• Suitable for boreholes with a minimum diameter of 76 mm
• Maximum installation depth of 150 metres
• Suitable for liquid temperatures from +2°C to +35°C
• Suitable for liquids with a pH of 5–9

Specifications

• Power supply: 1 x 200–240 V, 50 Hz
• Starting method: Integrated soft start
• Liquid temperature: +2°C to +35°C
• pH range: 5–9
• Minimum borehole diameter: 76 mm
• Maximum installation depth: 150 m
• Pump material: Stainless steel
• Dry-run protection: Yes – automatic restart every 5 minutes
• Overvoltage protection: Yes – cuts out below 150 V and above 315 V
• Over-temperature protection: Yes
• Overload protection: Yes

Optional SQ Pressure Kit

Add an SQ Pressure Kit to convert the pump into an automatic water supply system. The kit includes:

• Bore cap
• Pressure tank
• Pressure gauge
• Fittings

Product Details

Model: SQ2-55 N

Product Number: 96160413
