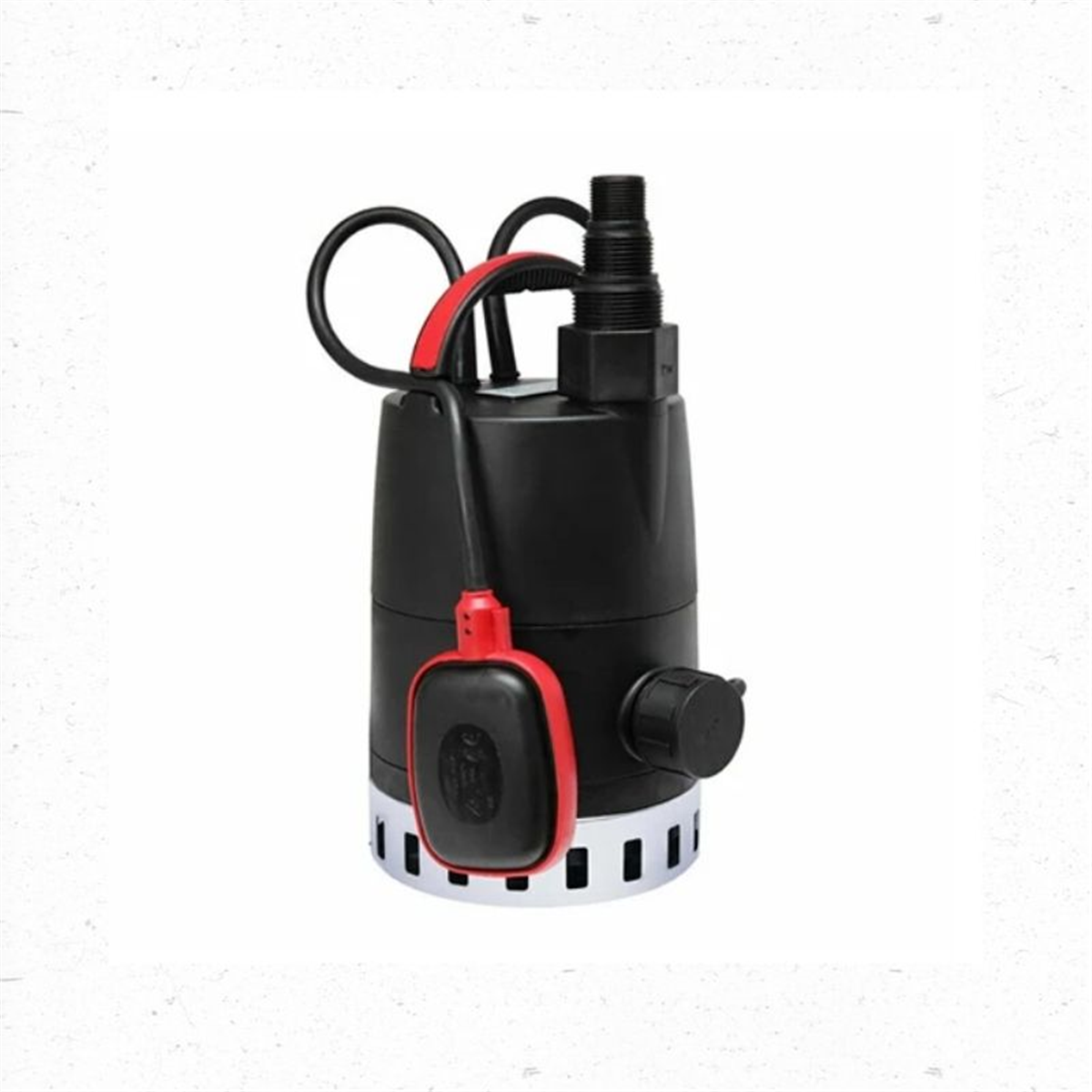

Grundfos Unilift CC5-A1 Submersible Drainage Pump - 100 LPM

The Grundfos UNILIFT CC5-A1 is a compact submersible drainage pump designed for pumping clean water and grey water. It is suitable for drainage of cellars, pits, tanks, swimming pools, ponds and other areas where accumulated water needs to be removed.

The pump can drain water down to approximately 3 mm when the strainer is removed, making it particularly useful for low-level drainage applications.

Applications

• Drainage of cellars and pits
• Tank and water drainage
• Rainwater pumping
• Grey water
• Swimming pools and ponds
• Surface water collection
• Emergency dewatering

Features & Benefits

• Compact and lightweight design
• Automatic float switch operation
• Single-stage submersible pump
• Suitable for clean and grey water
• Free passage for particles up to 10 mm
• Can drain water down to approximately 3 mm with strainer removed
• Stainless steel motor and shaft
• Composite pump housing and impeller
• Built-in motor protection
• Supplied with 5 m cable
• Suitable for portable or stationary use

Specifications

• Pump type: Single-stage submersible drainage pump
• Rated flow: 0.711 L/s (approximately 43 L/min)
• Maximum flow: 1.67 L/s (approximately 100 L/min)
• Rated head: 2.52 m
• Maximum head: 5 m
• Maximum particle size: 10 mm
• Pump outlet: R 1¼"
• Maximum installation depth: 2 m
• Power input: 250 W
• Motor output: 108 W
• Supply voltage: 1 x 220–240 V
• Frequency: 50 Hz
• Rated current: 0.98 A
• Enclosure class: IP68
• Insulation class: B
• Maximum liquid temperature: 40°C
• Cable length: 5 m
• Level control: Float switch

Product Details

• Model: UNILIFT CC5-A1
• Product Number: 96280972
