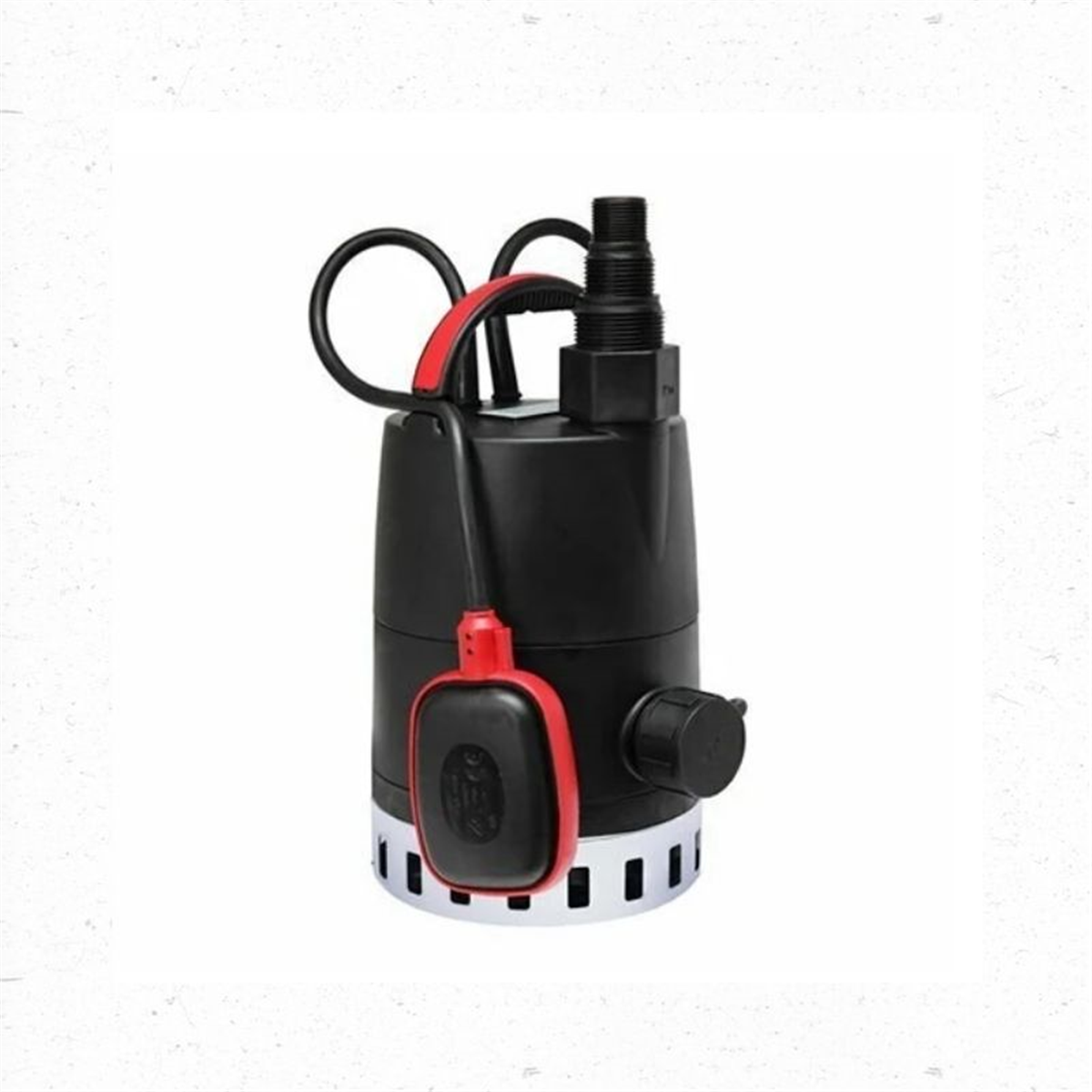

Grundfos Unilift CC9-A1 Submersible Drainage Pump - 170 LPM

The Grundfos UNILIFT CC9-A1 is a compact submersible drainage pump designed for pumping clean water, rainwater and grey water. It is suitable for both portable and stationary drainage applications, including cellars, pits, tanks, swimming pools, ponds and surface water collection.

The automatic float switch provides convenient start and stop operation, while the pump's compact design allows it to be used in a wide range of drainage applications.

Applications

• Drainage of cellars and pits
• Rainwater pumping
• Grey water
• Surface water
• Swimming pools and ponds
• Tank drainage
• Emergency dewatering

Features & Benefits

• Compact submersible design
• Automatic float switch operation
• Single-stage pump
• Suitable for clean and grey water
• Free passage for particles up to 10 mm
• Low-level drainage capability
• Stainless steel shaft and motor
• Composite pump housing and impeller
• Built-in motor protection
• Supplied with 10 m cable
• Suitable for portable or stationary use

Specifications

• Pump type: Single-stage submersible drainage pump
• Rated flow: 1.88 L/s (approximately 113 L/min)
• Maximum flow: 3.89 L/s (approximately 233 L/min)
• Rated head: 6.56 m
• Maximum head: 9 m
• Maximum particle size: 10 mm
• Pump outlet: R 1¼"
• Maximum installation depth: 10 m
• Power input: 780 W
• Supply voltage: 1 x 220–240 V
• Frequency: 50 Hz
• Rated current: 3.5 A
• Enclosure class: IP68
• Insulation class: B
• Maximum liquid temperature: 40°C
• Cable length: 10 m
• Level control: Float switch

Product Details

• Model: UNILIFT CC9-A1
• Product Number: 96280976
