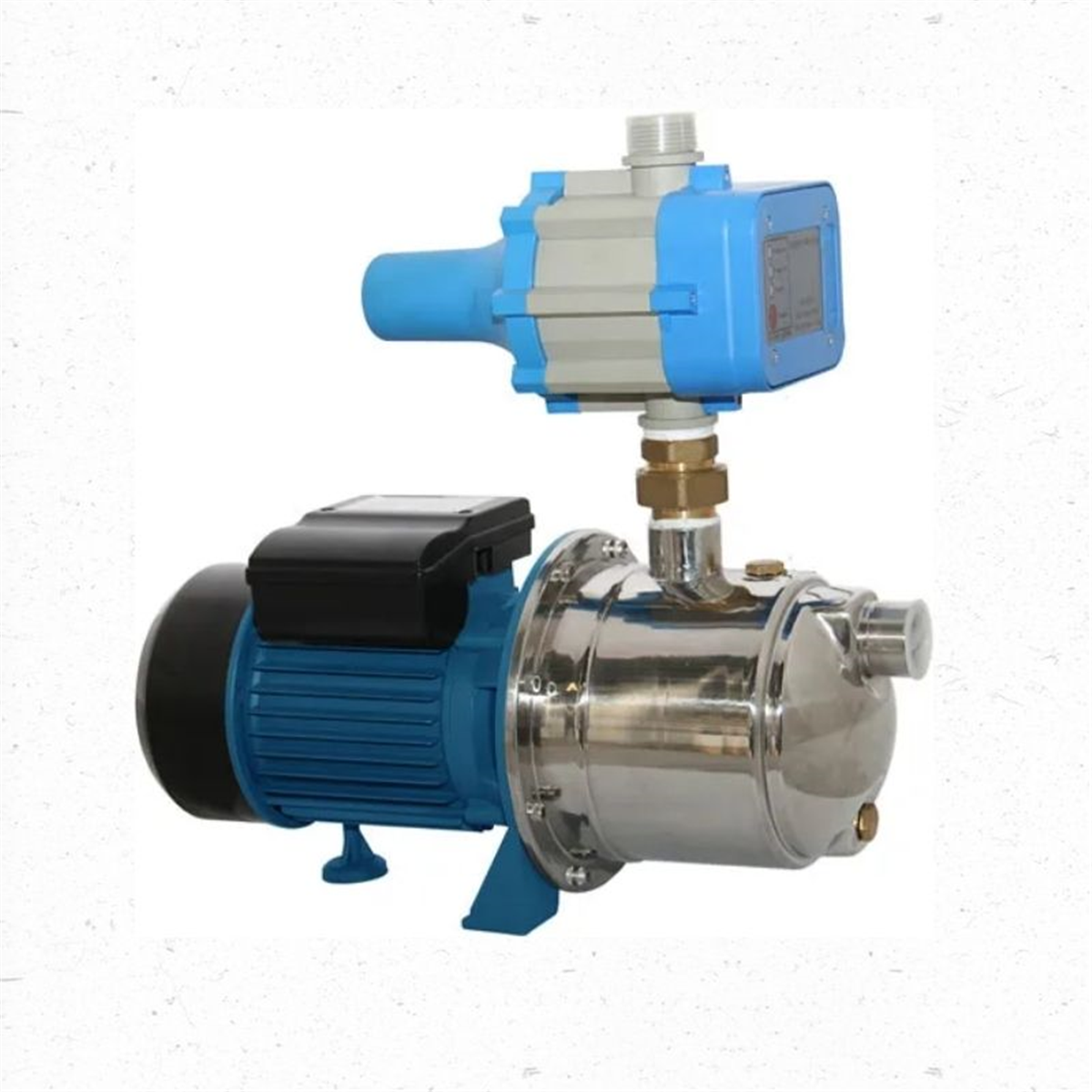

The REEFE WaterPro DJ72 is a self-priming jet pressure pump designed to supply reliable water pressure for household and garden applications. It is well suited to rainwater tank supply, domestic water transfer, irrigation and pressure boosting.

The DJ72 features an automatic pressure controller that starts the pump when a tap is opened and stops it when water demand ceases. The controller provides consistent pressure supply along with run-dry protection and an automatic restart function.

With a maximum flow of 71 LPM and maximum head of 40m, the DJ72 is designed for an average low-set house or two-storey unit with up to three bathrooms and is suitable for applications requiring approximately 5–8 taps.

Applications

• Domestic water supply
• Rainwater tank supply
• Garden irrigation
• Water storage tank pump sets
• Water transfer
• Pressure boosting
• Sheds and small workshops

Features & Benefits

• Self-priming jet pump
• Maximum flow of 71 LPM
• Maximum head of 40m
• Suction lift of up to 8m
• Automatic pressure controller provides consistent water pressure
• Run-dry protection helps protect the pump if the water supply runs out
• Automatic restart checks for water availability every 24 hours following a run-dry event
• Suitable for approximately 5–8 taps
• Certified to AS/NZS 4020 for use with potable water
• Reliable, vibration-free operation
• Quick Plug pressure controller connection
• Thermal overload protection
• 2-year warranty

Specifications

• Rated Flow: 40 LPM
• Rated Head: 25m
• Maximum Flow: 71 LPM
• Maximum Head: 40m
• Suction Lift: 8m
• Recommended Number of Taps: 5–8
• Motor Input (P1): 0.93kW
• Motor Output (P2): 0.75kW
• Voltage: 240V
• Current: 4.7A
• Inlet: 25mm / 1" FBSP
• Outlet: 25mm / 1" MBSP
• Cable Length: 1.5m
• Ingress Protection: IP44
• Insulation Class: B
• Dimensions: 410 × 190 × 350mm

Construction

• Noryl jet, diffuser and impeller
• Grade 304 stainless steel casing and shaft
• Carbon/ceramic mechanical seals
• Quick Plug pressure controller
• Thermal overload protection
• IP44 motor with Class B insulation

Product Details

• Model: DJ72-2
• Product Number: 12246
