The Waterboy 3HR300 is a robust mid-range solar pumping system designed to provide reliable water supply for small to medium-scale rural and off-grid applications. With pumping capability up to 60m total dynamic head (TDH) and daily output of up to 11,160 litres, it is suited to stock watering, tank filling and remote water supply from bores or dams.

The complete system combines a 3" stainless steel helical rotor pump, brushless DC motor and integrated MPPT controller with three 140W monocrystalline solar panels. Soft-start technology, adjustable speed control and low-water protection help provide efficient and reliable operation without requiring a grid connection.

Applications

• Livestock water supply for small to medium grazing properties
• Tank filling
• Rural home and shed water supply
• Irrigation of gardens, orchards and small paddocks
• Off-grid bore water extraction
• Dam water transfer
• Remote water supply systems

Features & Benefits

• 3" helical rotor solar pump for efficient water delivery
• Brushless DC motor for reliable, low-maintenance operation
• Integrated MPPT controller to maximise available solar power
• Built-in soft-start technology
• Adjustable speed and timer control
• Stainless steel pump, motor and wetted components
• Low-water protection included with the bore kit
• Simple installation with no grid power connection required
• Maintenance-free pump system
• Designed for reliable operation in remote rural applications
• Up to 60m TDH
• Up to 11,160 L/day depending on pumping head

Pump Performance

Performance figures are based on the manufacturer's published specifications.

Control Box Features

• Integrated MPPT solar controller
• Soft-start technology
• Adjustable speed control
• Adjustable timer control
• Pump and controller status indicators
• Low-water protection connection
• Tank switch/pressure switch connection
• Compatible with Waterboy tank and pressure switch accessories

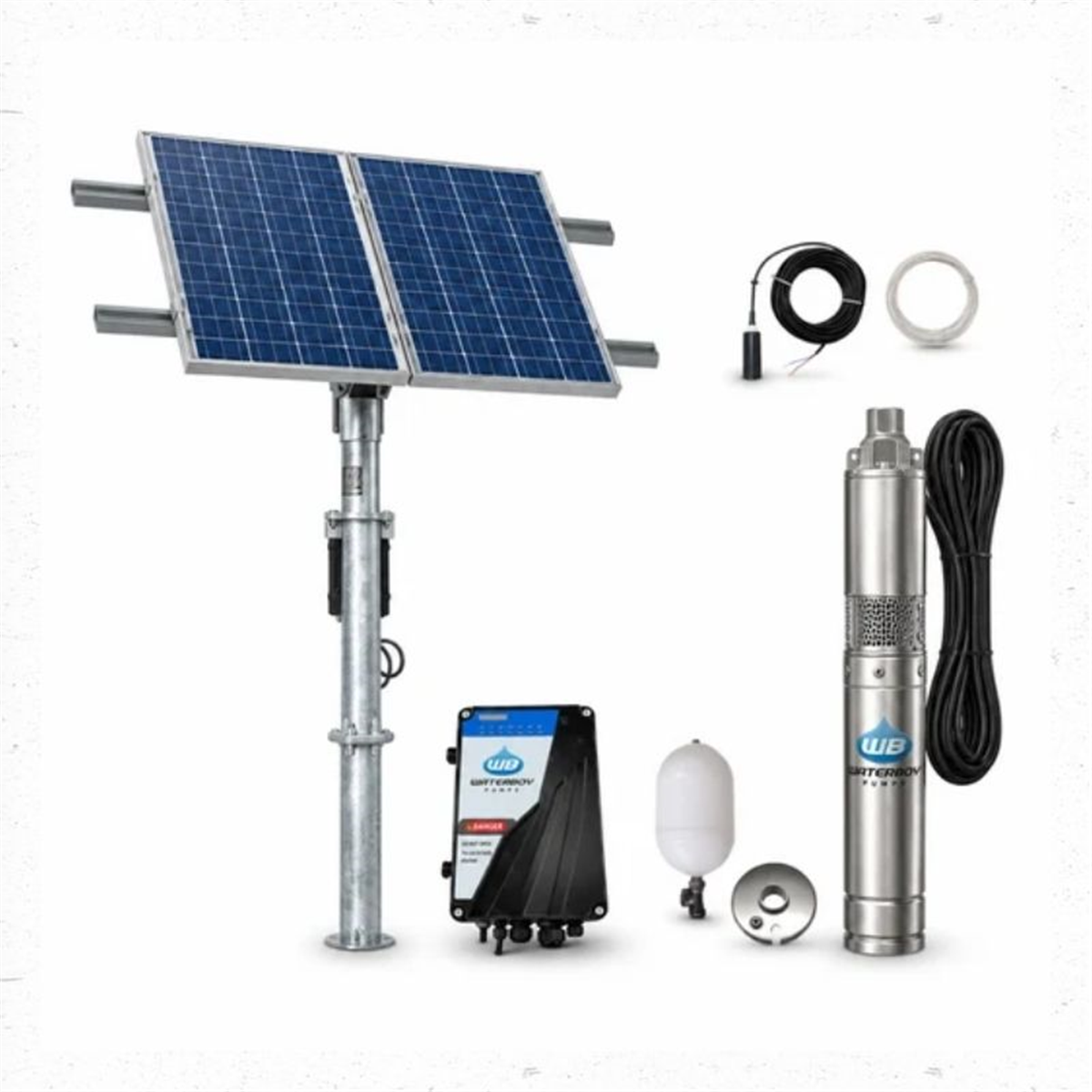

System Includes

• 3HRSS submersible helical rotor pump, motor and controller
• 3 × 140W monocrystalline solar panels
• Heavy-duty cyclone-rated pole mount frame
• 35m power cable
• Low-water probe and safety cabling
• Bore cap or dam float
• Low-water protection for bore kit configuration

Optional Accessories

• 6101 – Tank switch
• 6045NO – Pressure switch
• 6112 – 1.5" double-acting float valve
• 6013 – 3" HR sacrificial anode
• Tank full switch with 20m cable
• 12 bar pressure switch with gauge and fittings
• Additional pump cabling

Bore & Dam Options

The 3HR300 is available in:

• 3HR300-B35 – Bore Kit
• 3HR300-D35 – Dam Floating Kit

Product Details

• Model: 3HR300
• Product Number: 3HR300-B35 / 3HR300-D35
